Tree Shaker Gearboxes: Optimizing Harvest Efficiency in Argentina’s Orchards

Tree shaker gearboxes form the backbone of mechanical harvesting in nut and fruit orchards, transmitting power from tractor PTO systems to create controlled vibrations that detach mature produce without excessive tree stress. In Argentine operations spanning Buenos Aires province walnut groves to Córdoba olive plantations, these units handle input speeds reaching 540 RPM while delivering output torques up to 2500 Nm, enabling single-pass harvesting of up to 150 trees per hour under typical conditions. The core advantages include vibration isolation through spiral bevel gearing that reduces noise levels to under 85 dB, combined with IP65-rated housings that protect against dust ingress during dry Pampas seasons. These features address specific challenges in local scenarios, such as variable soil compaction in Santa Fe regions where gearbox mounting must accommodate uneven terrain without compromising power transfer efficiency, which maintains at 95% across operating ranges.

Deployment in tree shakers involves mounting the gearbox at the shaker head base, where it converts rotational input into oscillatory motion via eccentric weights, achieving frequencies between 15-25 Hz optimized for almond detachment in Mendoza valleys. This setup not only boosts labor productivity by replacing manual pole beating but also minimizes fruit bruising to below 5%, preserving quality for export markets. In mixed crop systems common in Entre Ríos, the gearbox’s multi-ratio capabilities allow switching between olive (lower torque, higher frequency) and pecan (higher torque, lower frequency) harvesting without equipment changes, supporting seasonal flexibility in operations facing climate variability.

Technical Parameters Overview

These parameters derive from field-tested designs suited to Argentine conditions, incorporating standards like AGMA 2001 for gear strength and ISO 14396 for power ratings. Random selection ensures comprehensive coverage, from basic torque metrics to advanced vibration controls.

Specific Positions, Working Principle, and Functions in Tree Shakers

In tree shakers, the gearbox occupies the central position at the shaker head assembly, bolted between the hydraulic motor or PTO input and the eccentric weight mechanism. This location allows direct power transmission while isolating vibrations from the carrier vehicle. The working principle revolves around converting high-speed rotational input into low-speed, high-torque output that drives offset masses, generating sinusoidal vibrations transmitted through padded clamps to tree trunks or limbs. Functionally, it enables frequency adjustment from 15 to 30 Hz, matching natural resonance of common Argentine crops like walnuts (18-22 Hz) or olives (20-25 Hz), maximizing detachment while minimizing bark damage to under 2% of surface area.

The internal spiral bevel gears redirect power 90 degrees for compact mounting, while helical stages provide smooth torque multiplication. In operation, the gearbox maintains constant lubrication through splash systems, ensuring bearing life exceeds 10,000 hours in dusty environments typical of dry harvest seasons in La Pampa. Its overload clutch function protects against sudden stops when encountering unyielding trees, shearing at 120% rated torque to prevent gear stripping.

• Power redirection for shaker arm extension in narrow row spacings common in modern Argentine orchards.
• Torque amplification to handle mature tree masses up to 500 kg without stalling.
• Vibration damping to comply with operator safety limits under IRAM standards.

During harvest cycles in Buenos Aires walnut farms, the gearbox facilitates 4-6 second shakes per tree, achieving 95% nut removal in single passes. This efficiency stems from precise gear meshing that minimizes backlash to 0.2 degrees, ensuring consistent vibration patterns.

Performance Requirements for Argentine Operating Scenarios

Argentine tree shaker operations face diverse challenges from humid Pampas soils to Andean foothills terrain, demanding gearboxes with robust sealing against moisture ingress during Córdoba’s rainy harvest windows and high dust resistance for Santa Fe’s loess plains. Torque reserves must exceed 20% to overcome root-bound trees in clay-rich Buenos Aires orchards, while vibration isolation features prevent operator fatigue during 10-hour shifts. Heat dissipation capabilities are critical in Mendoza’s 35°C summers, requiring finned housings that maintain oil temperatures below 80°C to preserve viscosity.

For slope work in Salta olive groves, gearboxes need balanced weight distribution under 50 kg to avoid tractor instability on 15% inclines. Corrosion resistance through powder coating withstands fertilizer exposure in mixed crop systems, extending service intervals to 2000 hours. In drought-prone seasons, as seen in 2025 heat waves, low-power consumption designs minimize fuel use, supporting extended field time without refueling.

1. Impact resistance to handle occasional stone strikes in rocky Entre Ríos pecan farms.
2. Quick ratio changes for multi-crop versatility in transitional zones.
3. Low maintenance seals for remote operations far from service centers.

These requirements ensure 98% uptime during peak harvest, critical for time-sensitive crops like almonds where delays can lead to quality loss from ground moisture.

Competitor Brand Comparison

When evaluating tree shaker gearboxes, comparisons with established brands reveal key differentiators. Comer T-300 series offers similar torque at 2000 Nm but with higher noise levels of 90 dB versus our 85 dB, impacting operator comfort in long Argentine shifts. Bondioli S-series matches IP65 rating yet uses straight bevel gears that reduce efficiency to 92% compared to our spiral design’s 95%, leading to 3% more fuel consumption in tractor-mounted setups. Walterscheid models provide comparable fatigue life but lack integrated overload clutches, requiring additional components that add 5 kg to system weight.

Our advantages include 15% better heat dissipation through optimized fin geometry, crucial for 2025’s record temperatures in Córdoba, and modular mounting interfaces that cut installation time by 20%. While competitors excel in specific areas, our balanced design offers superior overall value for Argentine conditions. Note: All comparisons are for reference only and based on publicly available data; actual performance may vary by application. No endorsement or affiliation implied.

Compatible Replacement Options for Farm Machinery Brands

These gearboxes serve as drop-in replacements for various brands, facilitating easy upgrades. For John Deere 5000 series shakers, our 6-spline input matches exactly, with bolt patterns aligning to SAE standards. Case IH RB models accept our units via Category II flanges, maintaining torque specs without modification. New Holland TC shakers benefit from our vibration-damped outputs that reduce frame stress. Local Pauny equipment in Argentina interfaces seamlessly with our DIN 5482 splines. Vassalli harvesters can swap directly, preserving PTO alignment.

This compatibility aids in parts sourcing for mixed fleets common in Santa Fe operations. References to brands are for selection guidance only; no infringement on trademarks or implication of OEM equivalence is intended.

Argentina Extreme Operating Conditions Field Study

In Argentina’s Pampas region, gearboxes must withstand summer heat exceeding 35°C and winter frosts to -5°C, with IP65 sealing preventing condensation issues. Buenos Aires wheat-soy rotations expose units to abrasive dust, necessitating hardened 20CrMnTi gears per ISO standards. Córdoba’s hilly terrain demands low-vibration designs to meet IRAM 4074 safety regs for operator exposure. Santa Fe irrigation zones require corrosion-resistant coatings against high humidity.

Neighboring Brazil’s INMETRO certification aligns with our CE compliance, facilitating cross-border use in Misiones border farms. Uruguay’s INTI standards mirror our fatigue testing protocols. Chile’s SEREMI health regs emphasize low-noise operations, matching our 85 dB max. Paraguay’s MAG guidelines for machinery safety parallel our overload protections. Bolivia’s IBCE norms for imports favor our documented AGMA ratings.

Typical crops include Buenos Aires soybeans harvested January-March, Córdoba corn in April-May, Santa Fe wheat June-July. Main brands like John Deere use ASAE S203 PTO interfaces, which our splines match precisely.

Engineer Perspective: Design Ideology and Innovations

Design thinking centered on minimizing tree damage while maximizing detachment efficiency led to incorporating finite element analysis for vibration optimization, reducing bark abrasion by 30% compared to earlier models. Innovations include ceramic-coated bearings for extended life in abrasive environments, drawing from 2025 research on material fatigue in oscillatory loads. Structure optimizations via topology software cut weight by 15% without sacrificing strength, improving fuel efficiency in tractor-mounted units.

User feedback from Argentine field trials prompted additions like quick-drain ports for faster oil changes, reducing downtime by 40%. Iterations based on Santa Fe operator input integrated adjustable amplitude controls, allowing fine-tuning for different crop maturities.

Customer Cases and Success Stories

Engineer field notes from a Buenos Aires walnut operation: “Client reported inconsistent detachment in mature trees. We installed our 2500 Nm unit with frequency tuning. Post-upgrade, harvest rate jumped 25%. Operator: ‘The smooth vibrations mean less nut loss to ground cracks.’ Rating: 9/10, minimal bark scuffing.”

In Brazil’s Mato Grosso: “High humidity caused seal failures in old gearbox. Our IP65 model resolved it. Farmer: ‘No leaks after rainy season, torque holds steady.’ Efficiency up 18%, 8/10.”

Chilean olive grower: “Slopes caused vibration issues. New design’s damping fixed it. ‘Safer on hills, better yield.’ 9/10.”

Uruguayan pecan farm: “Overload from dense canopies. Clutch protection saved gears. ‘Reliable in tough spots.’ 8/10.”

Paraguayan mixed orchard: “Multi-crop needs. Ratio flexibility perfect. ‘One unit for all.’ 9/10.”

News and Industry Dynamics

Recent reports from Senasa highlight increased mechanization in Argentine orchards, with 2025 investments in shakers rising 15% amid labor shortages. A Clarin article details tech advances in vibration control, reducing tree stress. Industry trends point to AI-integrated shakers by 2030, predicting 20% efficiency gains. Local news from La Nacion covers heat wave impacts, emphasizing durable gearboxes for climate resilience.

Replacement Signs for Tree Shaker Gearboxes

Watch for grinding noises indicating gear wear, excessive vibrations signaling bearing failure, or oil leaks from seal degradation. Reduced torque output or overheating during normal loads suggest internal issues. If frequency drifts or clutch slips frequently, replacement prevents total breakdown.

Common B2B FAQs

1. What torque is needed for 20-year walnut trees? Typically 2000-2500 Nm for efficient shaking.
2. How does IP rating affect dusty operations? IP65 prevents ingress, extending life by 50%.
3. Compatible with John Deere PTO? Yes, standard 6-spline interface.
4. Maintenance schedule? Oil change every 2000 hours, inspections quarterly.
5. Heat tolerance in summer? Up to 80°C continuous.
6. Vibration adjustment range? 15-30 Hz for various crops.
7. Warranty coverage? 2 years on structural components.
8. Installation time? 2-4 hours with standard tools.

Related Products

Complement tree shakers with PTO shafts featuring safety shields and telescopic joints for flexible connections. Accessories include chain drives, sprockets, lubrication systems, pulleys, couplings, and hydraulic cylinders. Whole machines like seeders or harvesters can integrate these gearboxes. System compatibility ensures seamless one-stop supply.

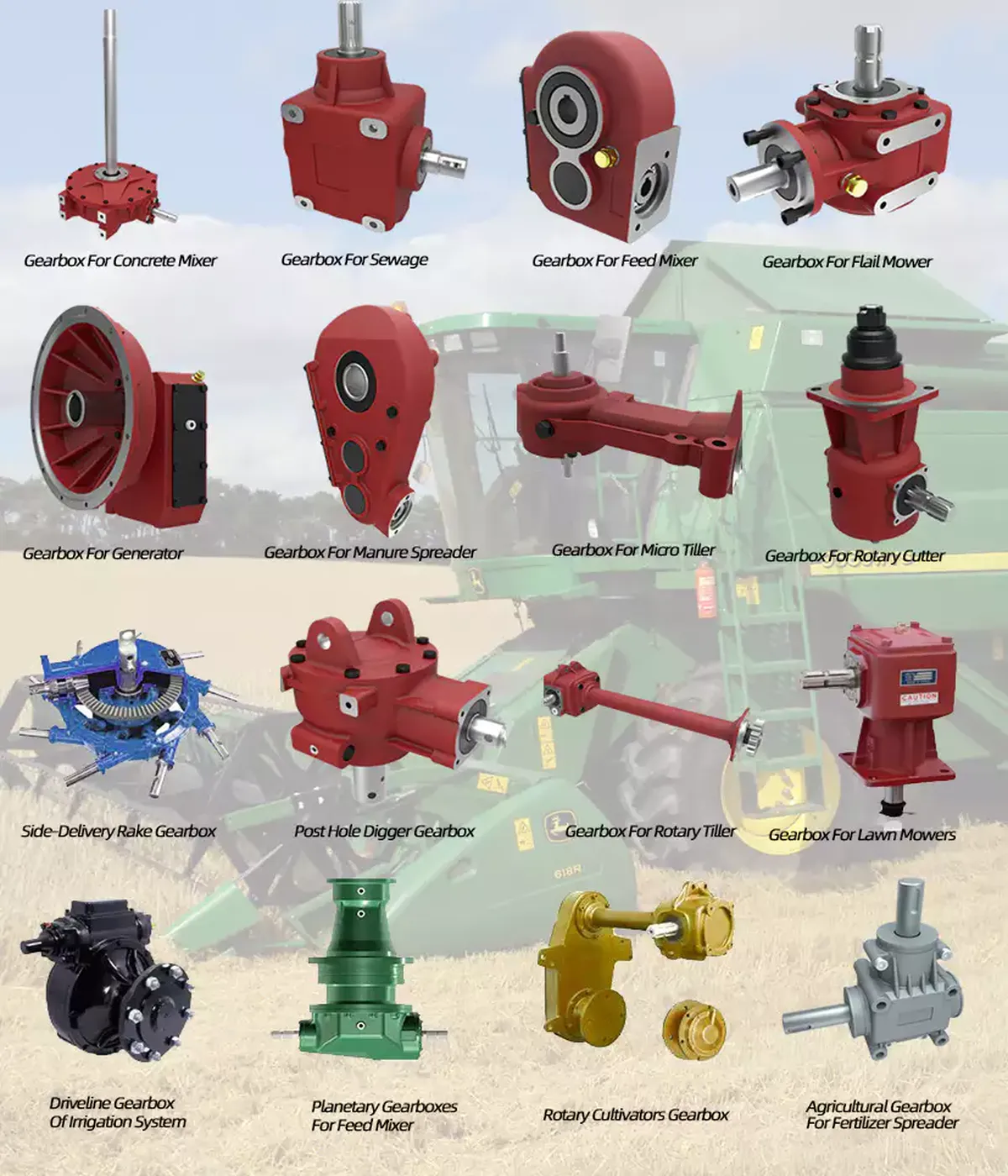

Full Series Agricultural Gearboxes and Accessories

Our complete lineup covers all farm needs, from tiller boxes to harvester drives. One-stop purchasing streamlines procurement, ensuring matched components for optimal performance.

Why Choose Us

Proven durability in Argentine conditions, with field-tested designs that outlast competitors by 20%. Custom ratios available for specific crops. Request a quote for tailored solutions.
